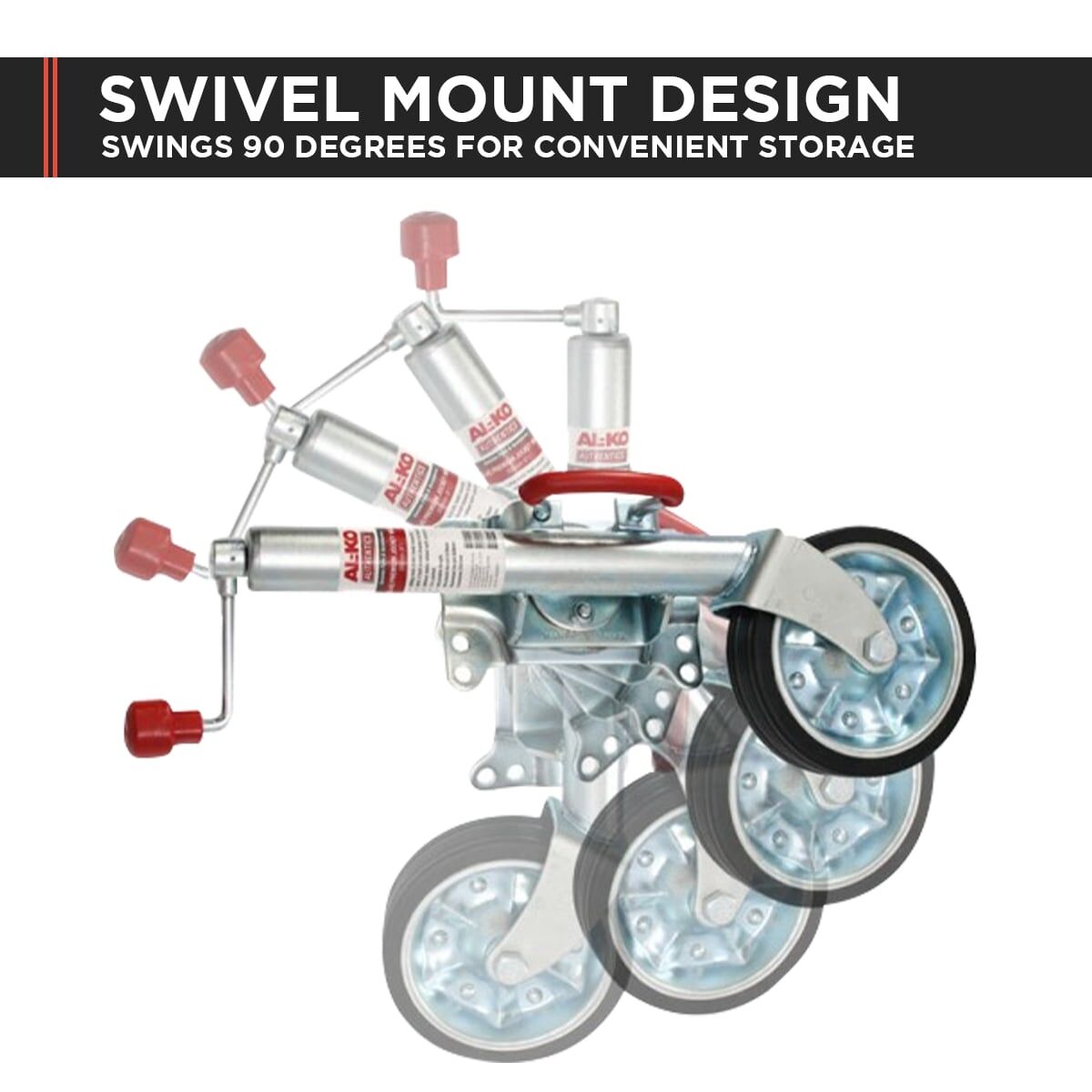

This premium AL-KO swing jockey wheel allows for quick coupling and uncoupling of trailers and caravans. The shaft can be rotated into a horizontal position, so you never have to remove your jockey wheel after use. Just swing it up for convenient storage.

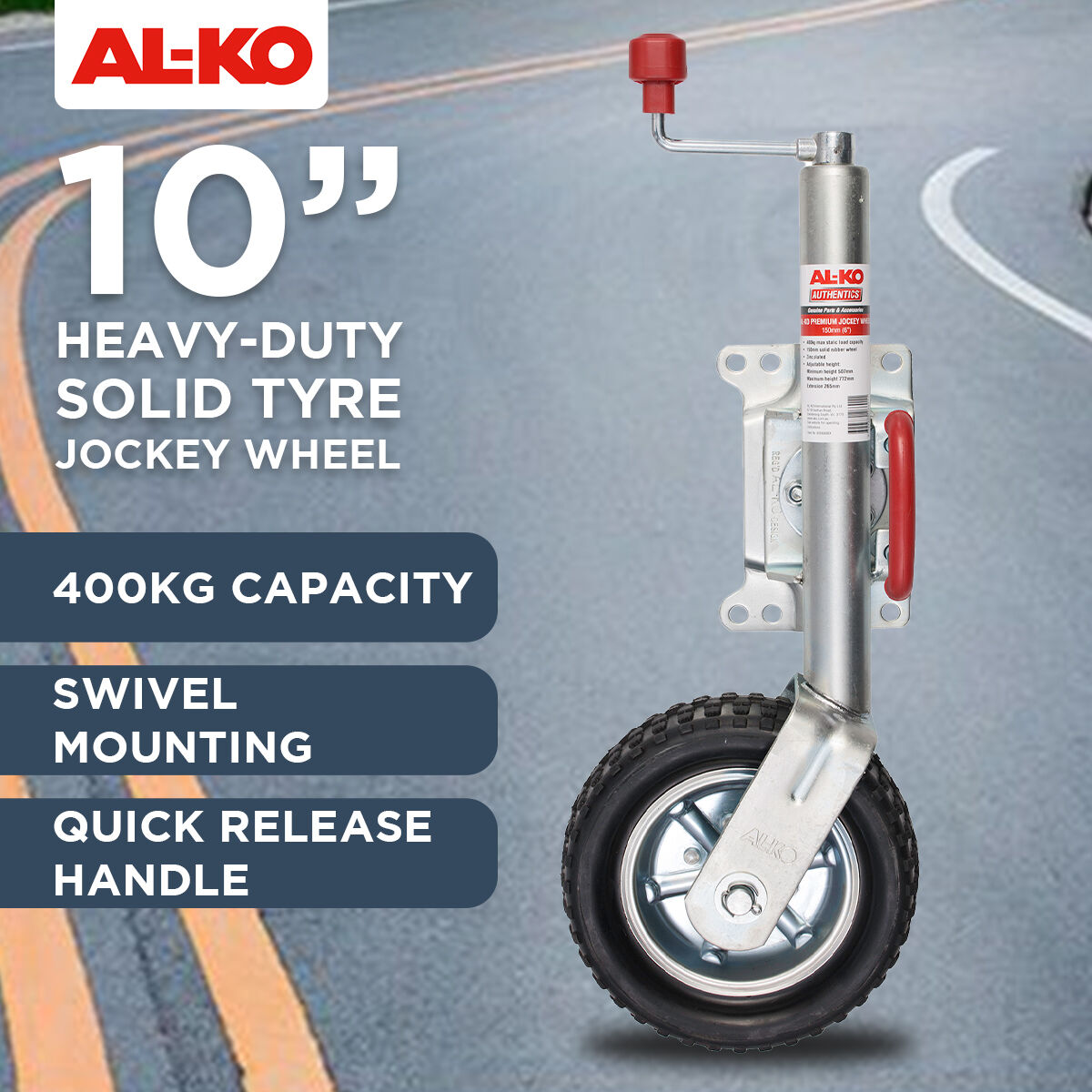

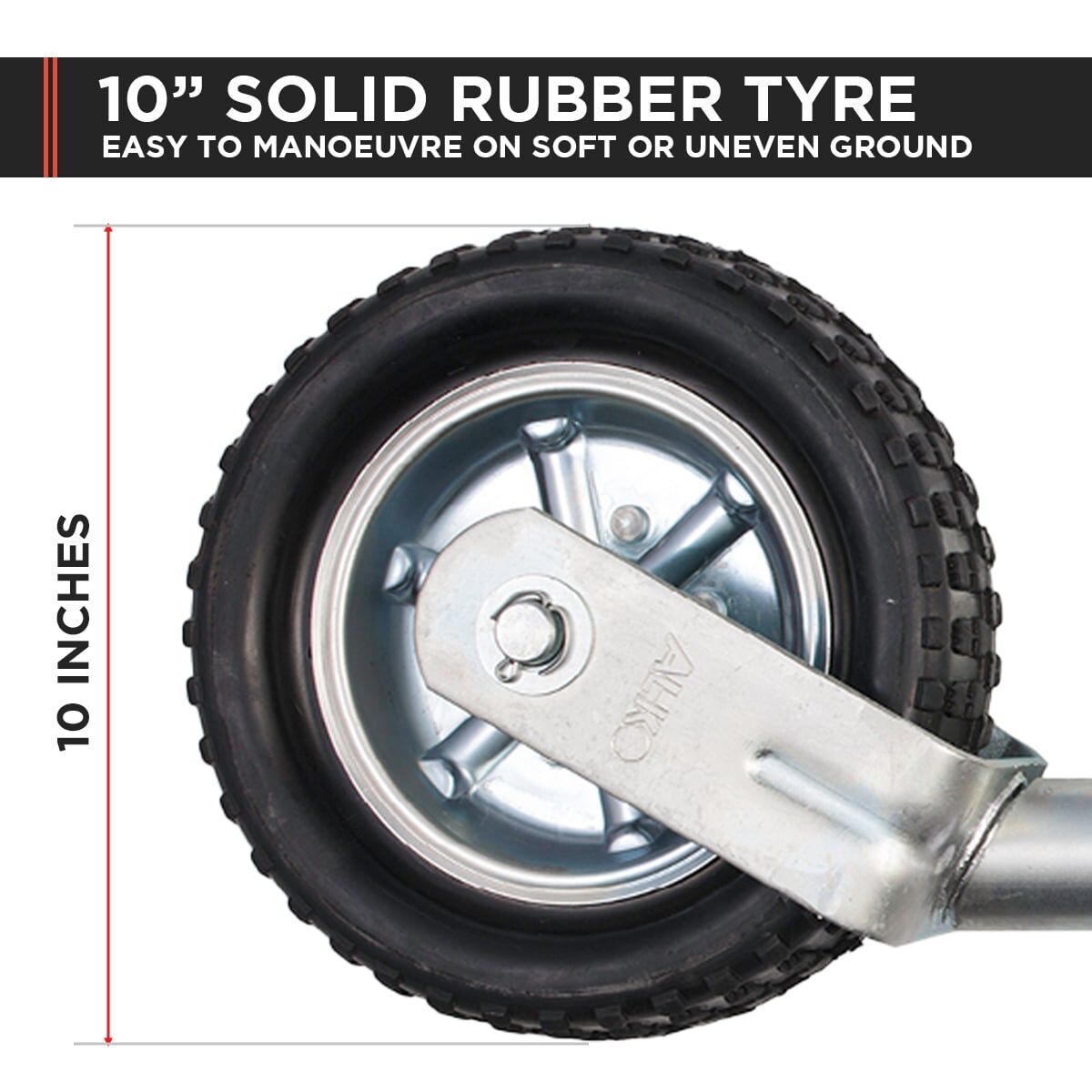

This jockey wheel has a 400kg static weight capacity and is ideal for heavy-duty use. It has a 250mm (10-inch) solid rubber tyre that can handle a variety of surfaces, including soft or uneven ground. The bolt-on swivel bracket allows for easy installation on your drawbar (U-bolts not included).

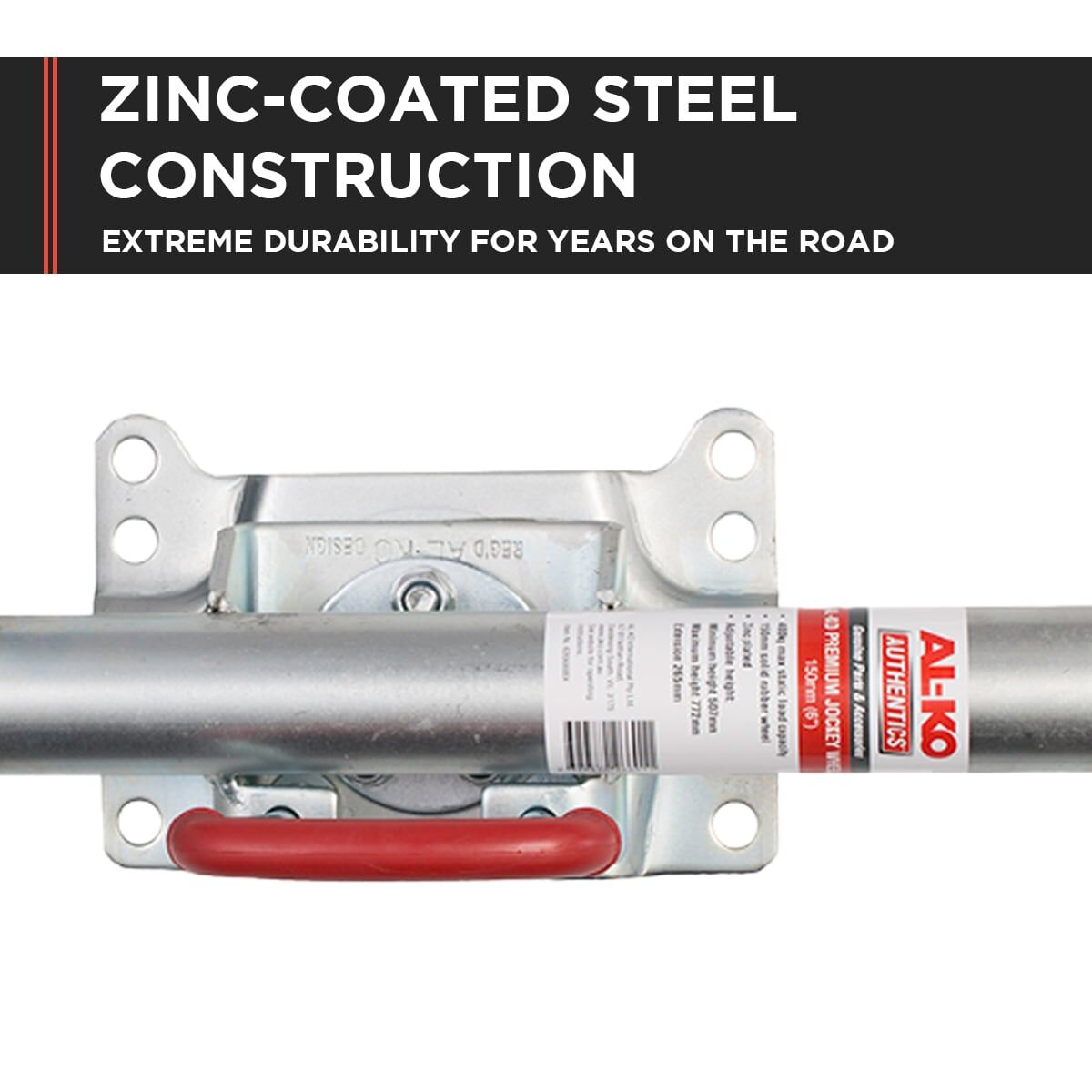

With a 48mm zinc-coated shaft, this jockey wheel is resistant to corrosion. Its 250mm maximum extension allows for a lift range of 320mm to 570mm between the ground and the centre of your drawbar. With its high weight capacity and convenient swivel mount, this jockey wheel is a must-have for serious campers

Key Features:
  • 400kg static weight capacity
  • Convenient swivel mount
  • Quick-release handle
  • 10-inch solid rubber tyre
  • Zinc-coated for extreme durability
  • Mounting: Swivel
  • Static Capacity: 400 kg
  • Tube O.D.: 48mm

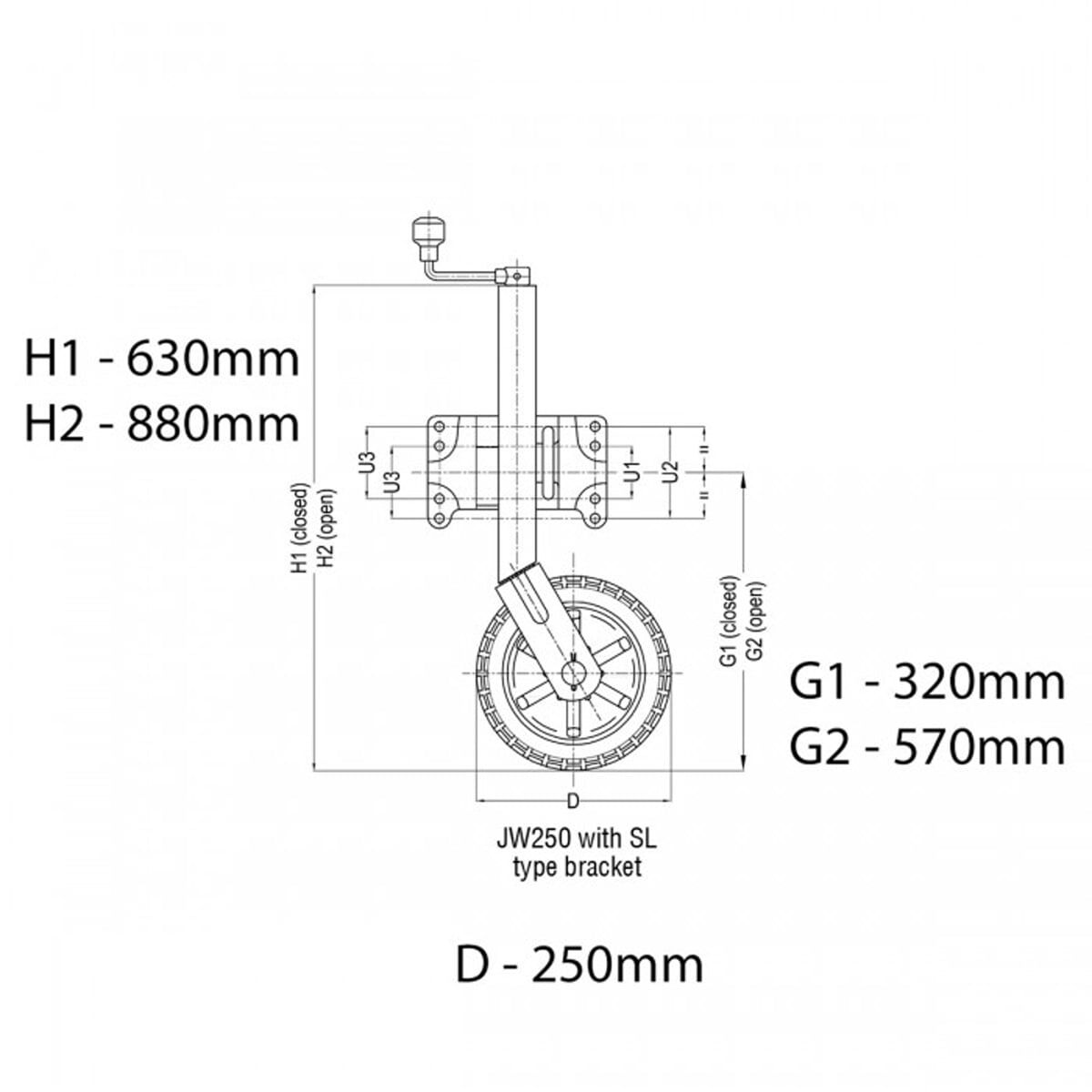

  • Closed H1: 630mm
  • Open H2: 880mm
  • W: 185mm
  • Weight: 11 kg
  • Solid rubber tyre
Specifications:
  • Brand: AL-KO
  • Type: Swivel
  • Max Weight Cap: 400kg
  • Frame: Steel
  • Wheel Size: 10'
Package Includes: V240-623660XP3
  • 1 X AL-KO 10 in

(V240-623660XP3)

SKU V240-623660XP3
Barcode # 9358528069162
Brand Alko
Shipping Weight 13.0000kg
Shipping Width 25.000m
Shipping Height 18.000m
Shipping Length 80.000m
