Features:
Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

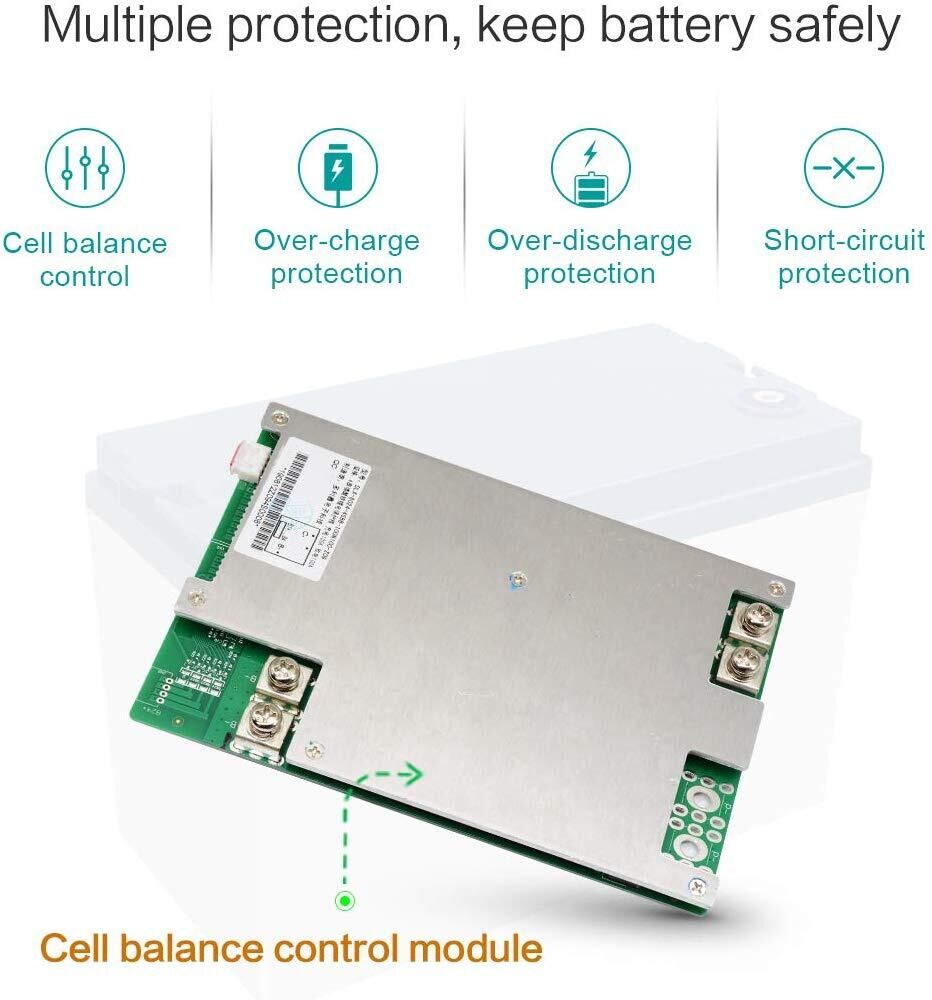

Built-in BMS protection for over-charge, over discharge, over current and over temperature.

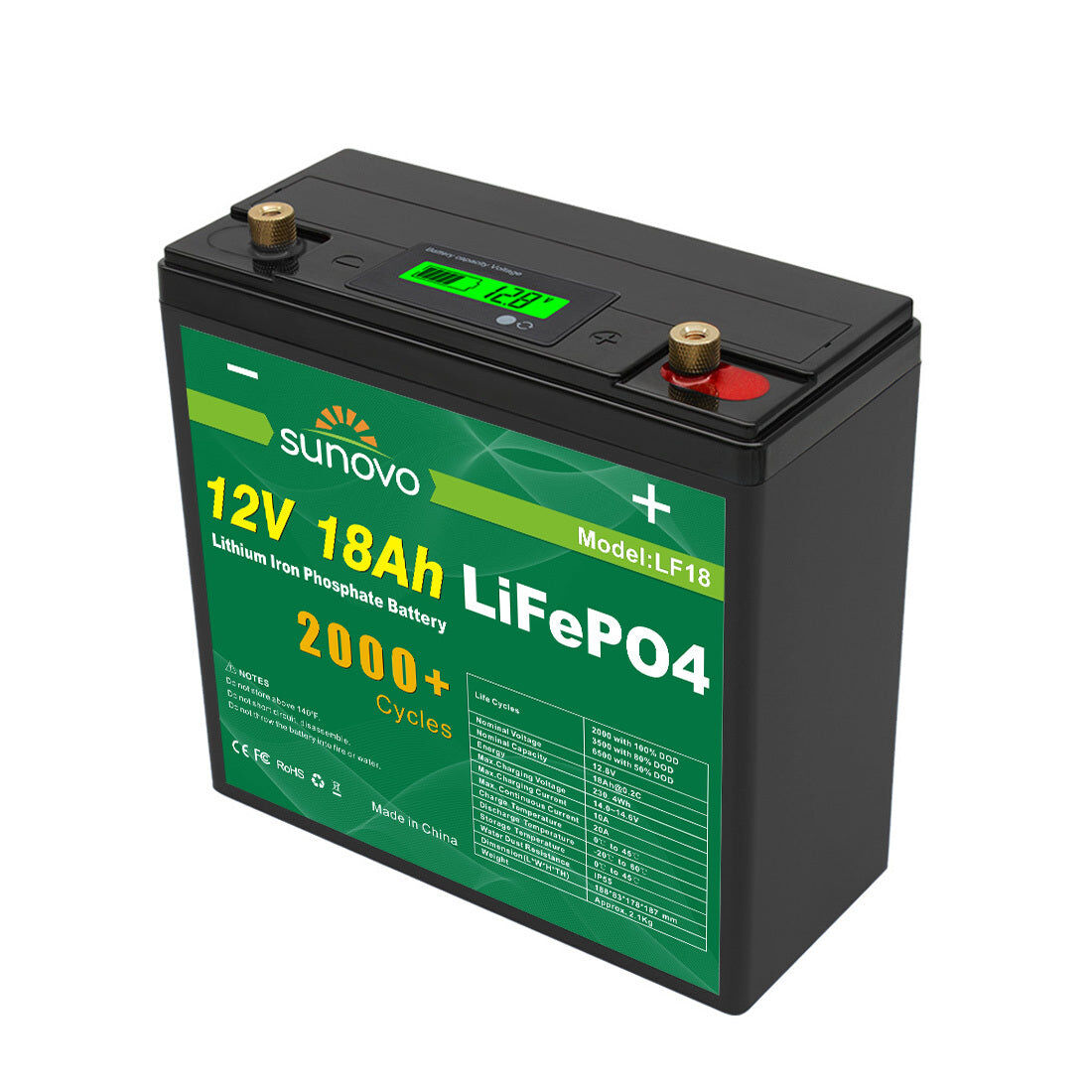

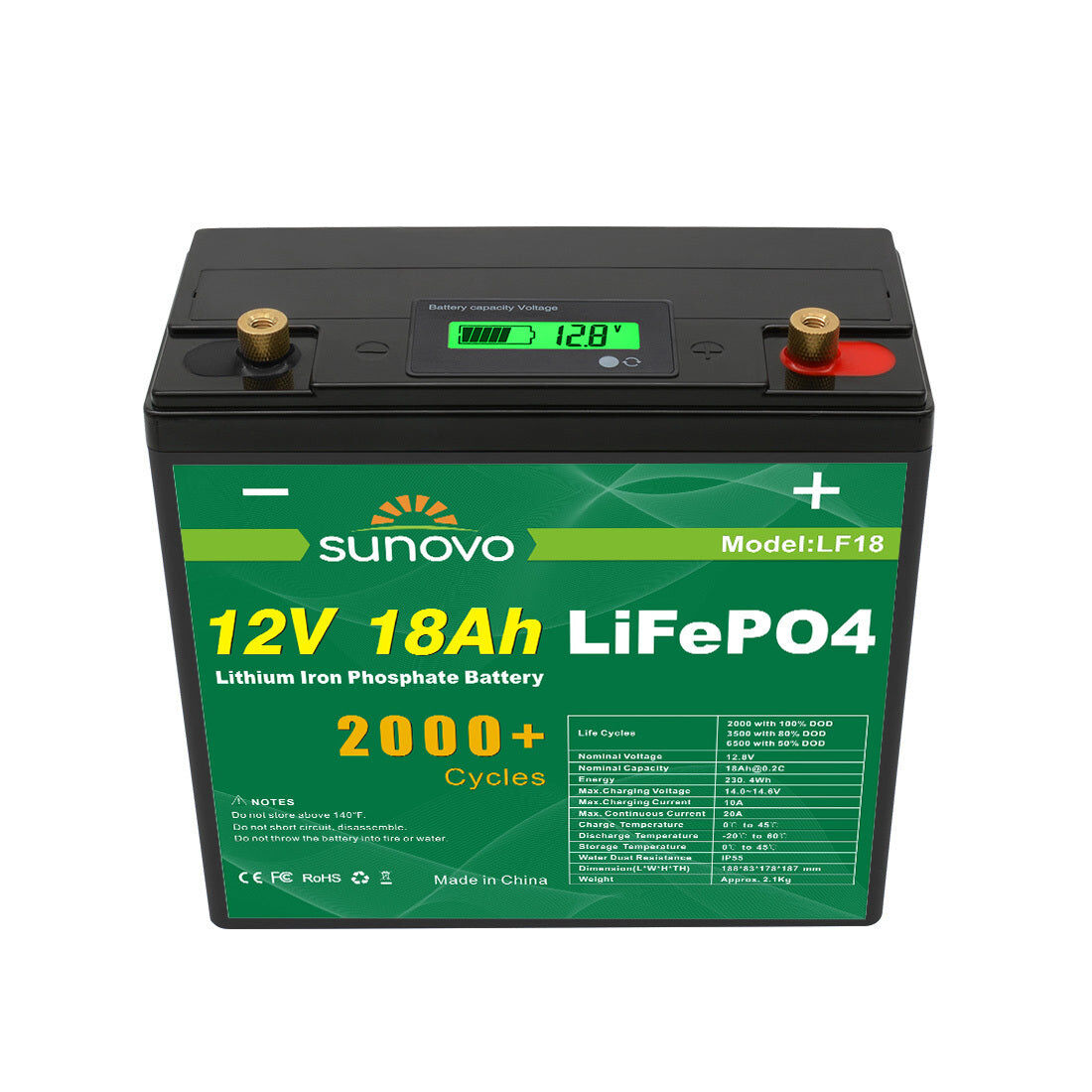

LCD screen display showing the battery remaining
Free of maintenance
Internal cell balancing.
Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
Can be charged using most standard lead-acid charges (set).
Wider temperature range:-20℃~60℃.
Support for Series application expansion (up to 51.2V) and two in parallels.

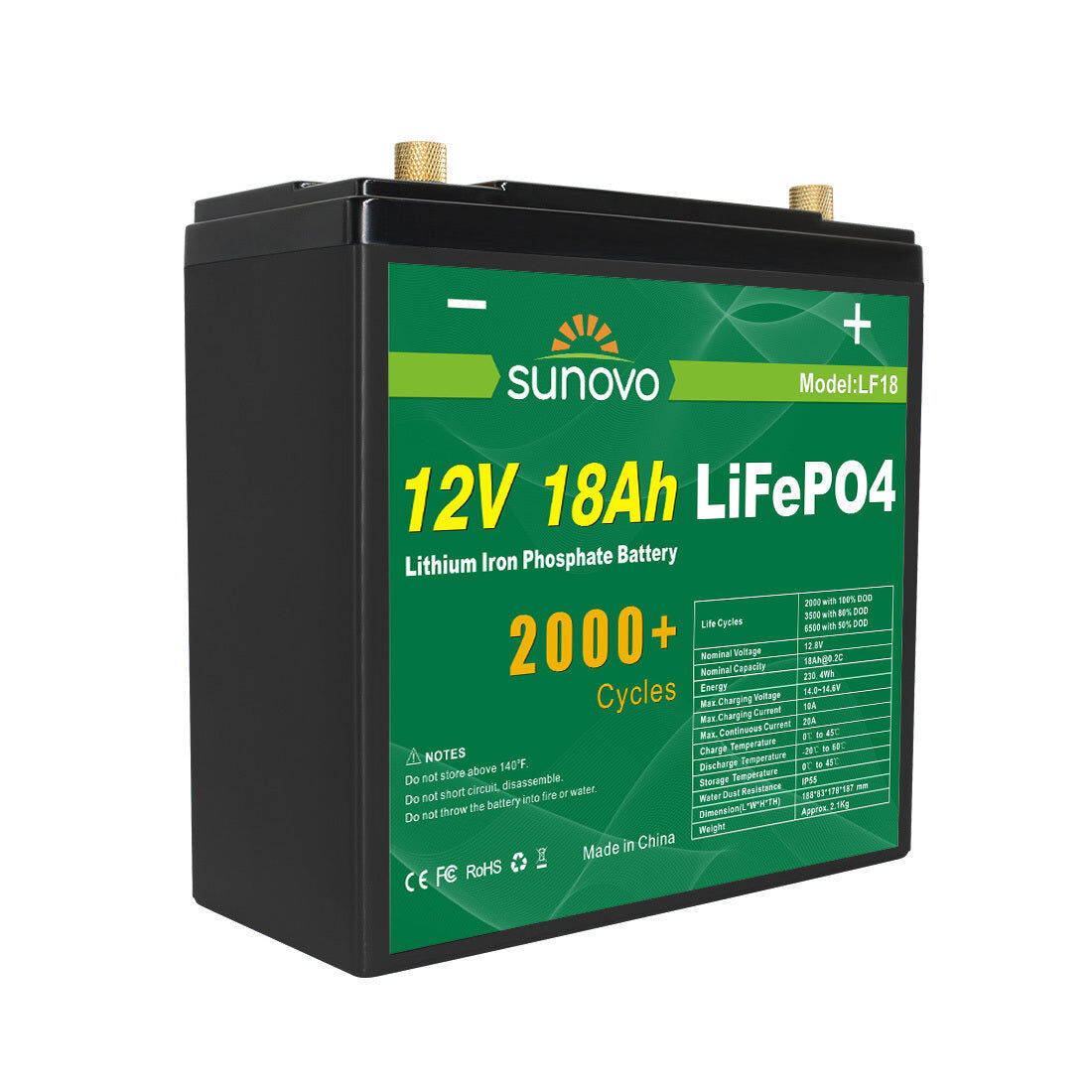

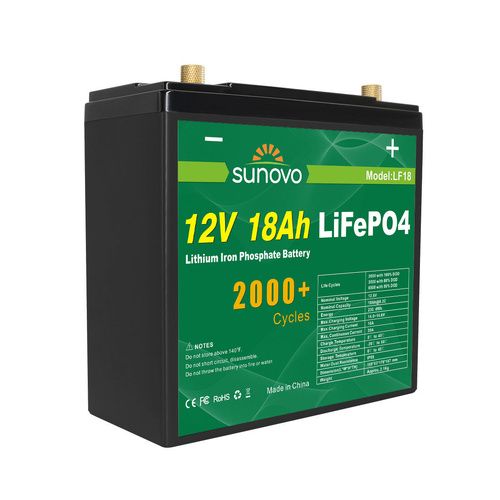

V1060-LF18


Specifications:

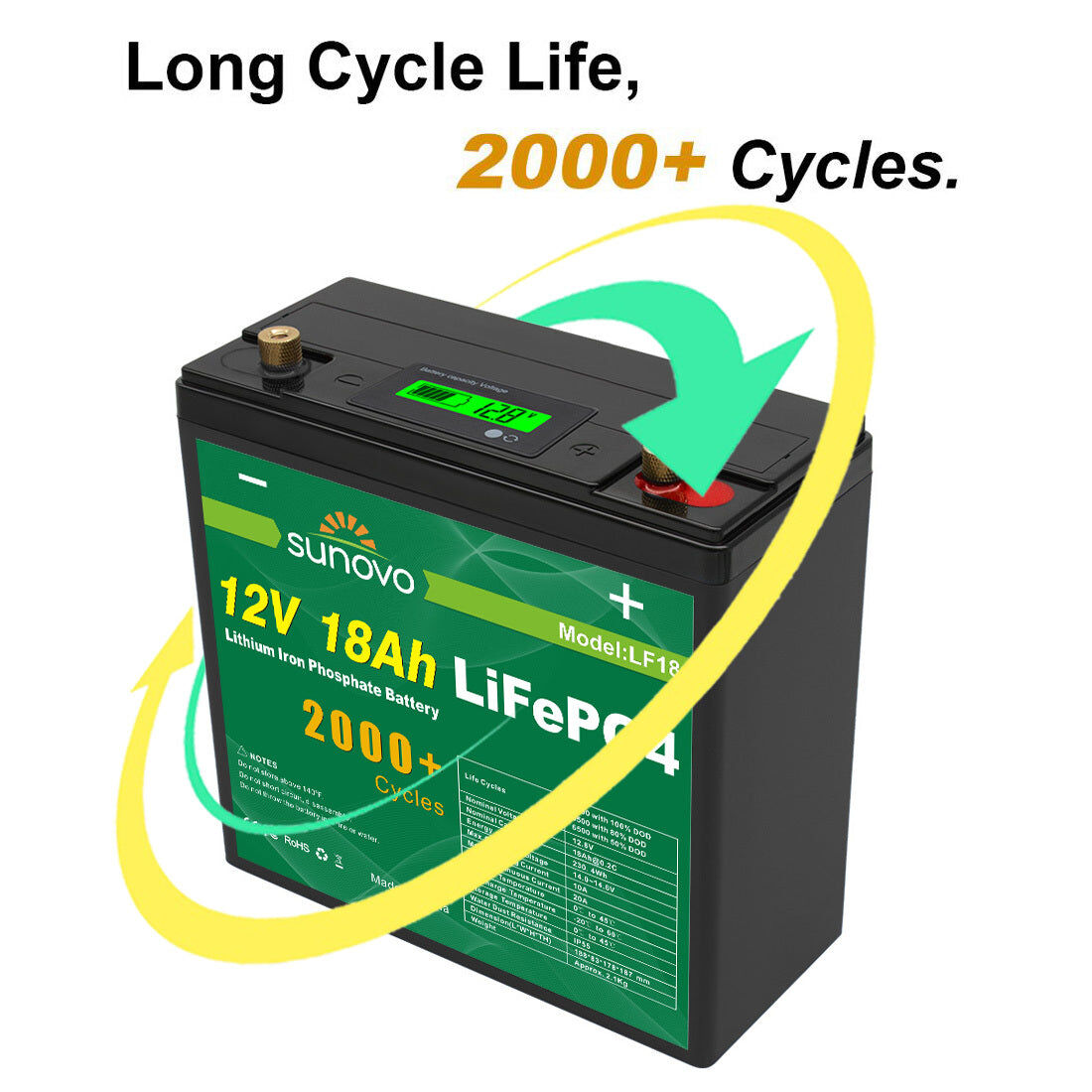

Life Cycles: 2000 with 100% DOD, 3500 with 80% DOD, and 6500 with 50% DOD
Power Capacity: 230.4Wh
Nominal Voltage: 12.8V
Nominal Capacity: 18Ah@0.2C
Max. Charging Voltage: 14.0-14.6V
Charging Current: 9A
Max. Charging Current: 18A
Discharging Current: 9A
Max. Continuous Current: 20A
Charge Temperature: 0℃-45℃
Discharge Temperature: -20℃ to 60℃
Water Dust Resistance: IP55
Dimension: L188x W83x H178mm
Weight: 2.1kg
Terminal: M5

(V1060-LF18)

SKU V1060-LF18
Barcode # 9361329000876
Brand Does not apply
Shipping Weight 2.7000kg
