Features:
? ? ?Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

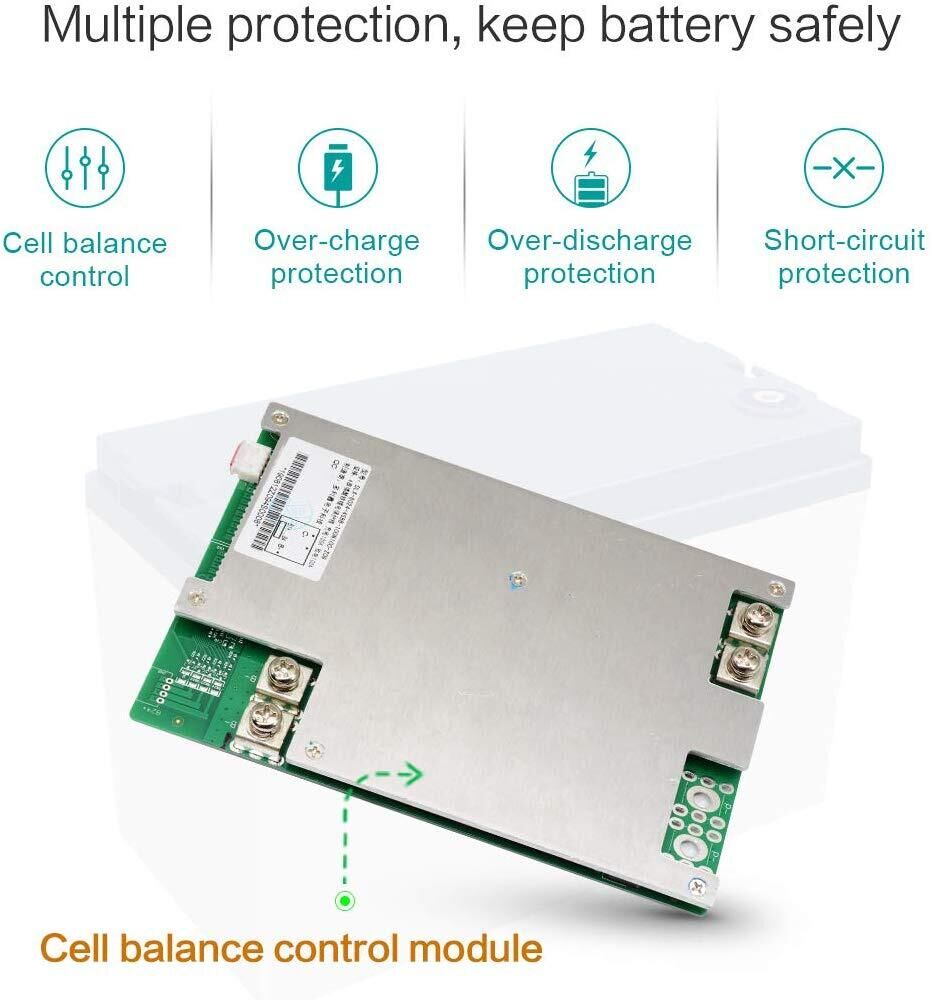

? ? ?Built-in BMS protection for over-charge, over discharge, over current and over temperature.
? ? ?LCD screen display showing the battery remaining
? ? ?Free of maintenance
? ? ?Internal cell balancing.
? ? ?Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
? ? ?Can be charged using most standard lead-acid charges (set).
? ? ?Wider temperature range:-20℃~60℃.
? ? ?Support for Series application expansion (up to 51.2V) and two in parallels.

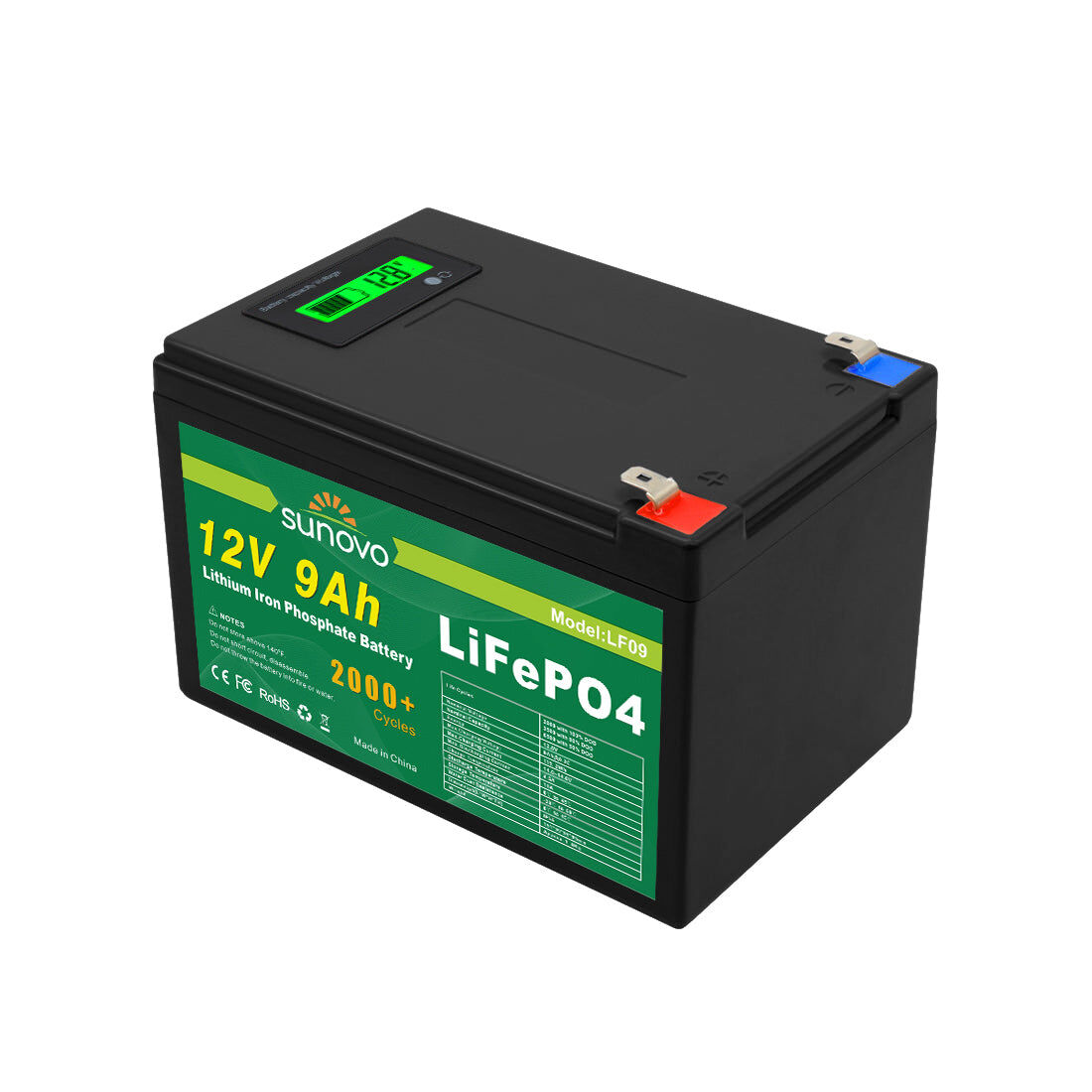

V1060-LF09


Specifications:

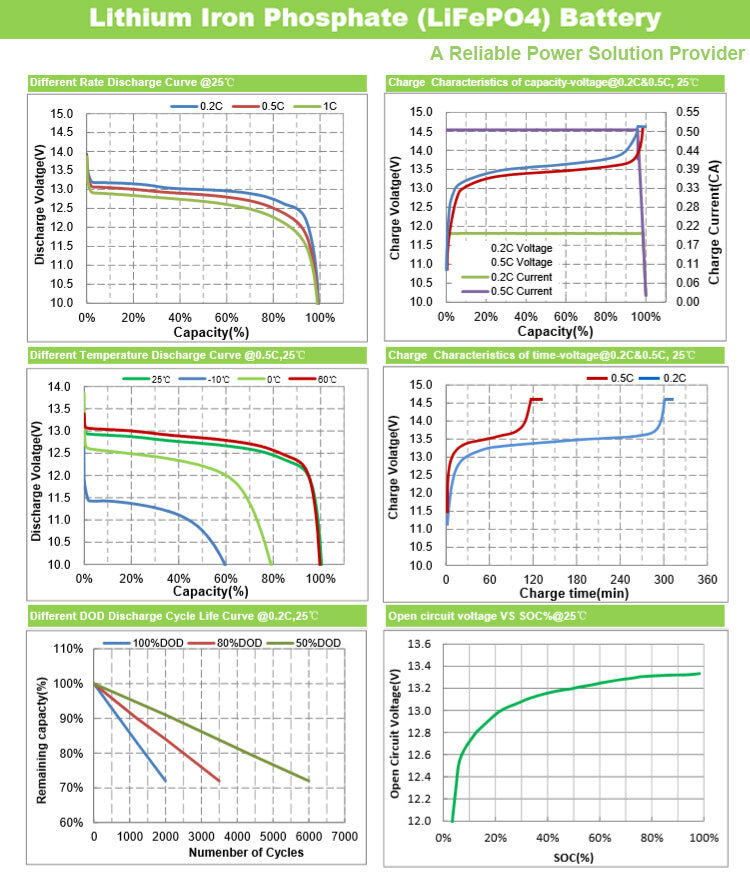

? ? ?Life Cycles: 2000 with 100% DOD, 3500 with 80% DOD, and 6500 with 50% DOD
? ? ?Power Capacity: 115.2Wh
? ? ?Nominal Voltage: 12.8V
? ? ?Nominal Capacity: 9Ah@0.2C
? ? ?Max. Charging Voltage: 14.0-14.6V
? ? ?Charging Current: 4.5A
? ? ?Max. Charging Current: 9A
? ? ?Discharging Current: 4.5A
? ? ?Max. Continuous Current: 15A
? ? ?Charge Temperature: 0℃-45℃
? ? ?Discharge Temperature: -20℃ to 60℃
? ? ?Water Dust Resistance: IP55

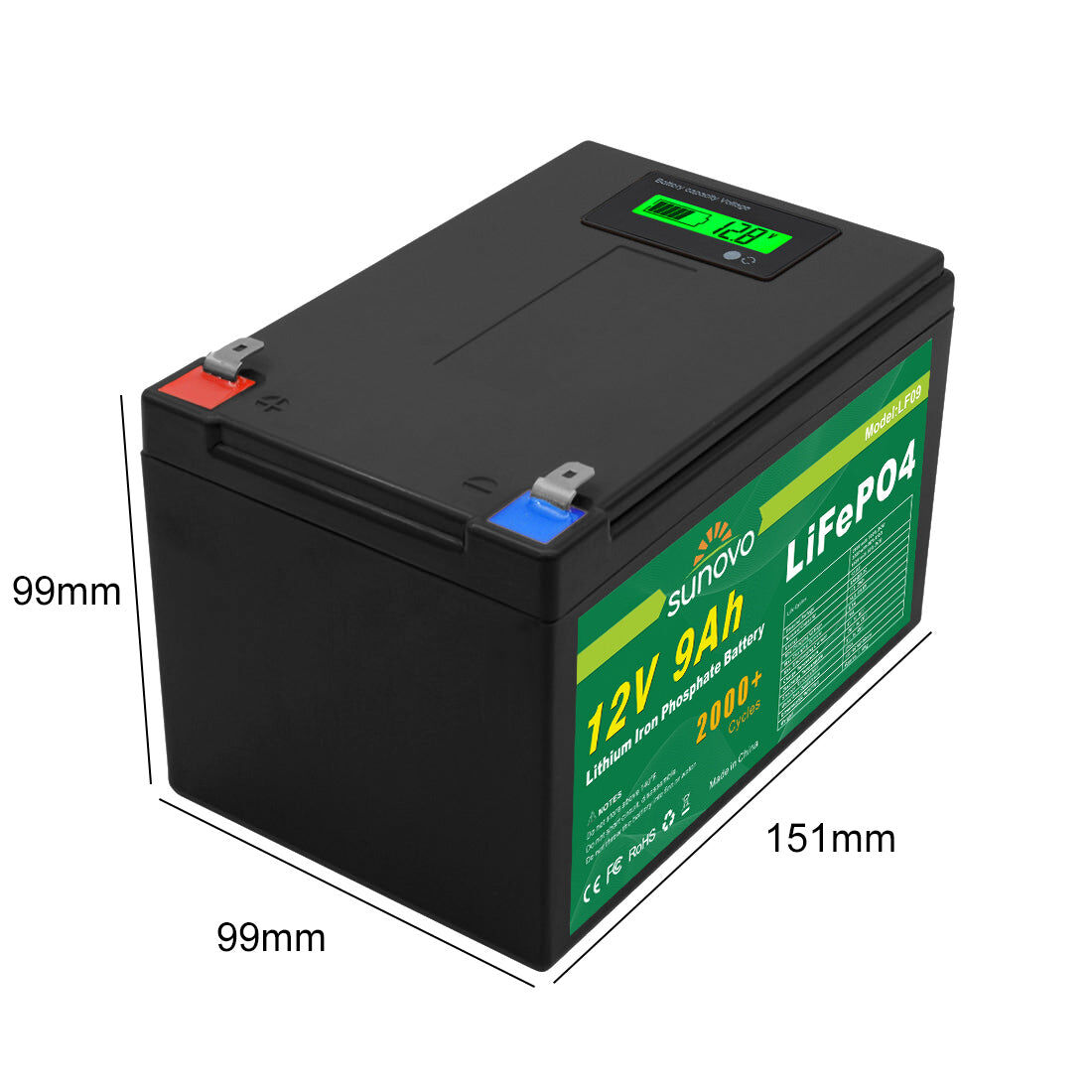

? ? ?Dimension: L151x W99x H99mm
? ? ?Weight: 1.5kg
? ? ?Terminal: F1

(V1060-LF09)

SKU V1060-LF09
Barcode # 9361329001897
Brand Does not apply
Shipping Weight 1.3000kg
