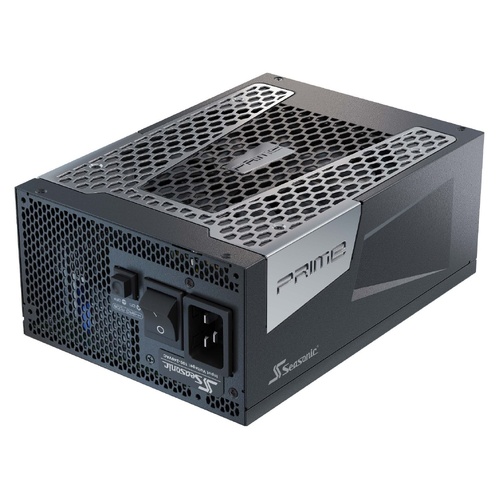

PRIME TX ATX 3.1
The Seasonic PRIME TX ATX 3.1 Series is built on top of all the great features of PRIME TX platform with added ATX 3.1 and PCIe 5.1 compatibility. Currently the 1600 W and 1300 W units are equipped with native 12V-2??6 connectors, Digital Fan Control, and 105??C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make these power supplies perfect to welcome the newest high power graphic cards and processors on the market.


Technical Specifications
80PLUSTitanium
Cybenetics Efficiency LevelTitanium
Cybenetics Noise LevelLambda A
Form FactorATX/EPS
Dimensions210 mm (L) x 150 mm (W) x 86 mm (H)
Fan InformationFan Size135 mm
Fan ControlDigital Hybrid Fan Control
Fan BearingFluid Dynamic Bearing
Life Expectancy50,000 hours at 40 C, 15 % - 65 % RH

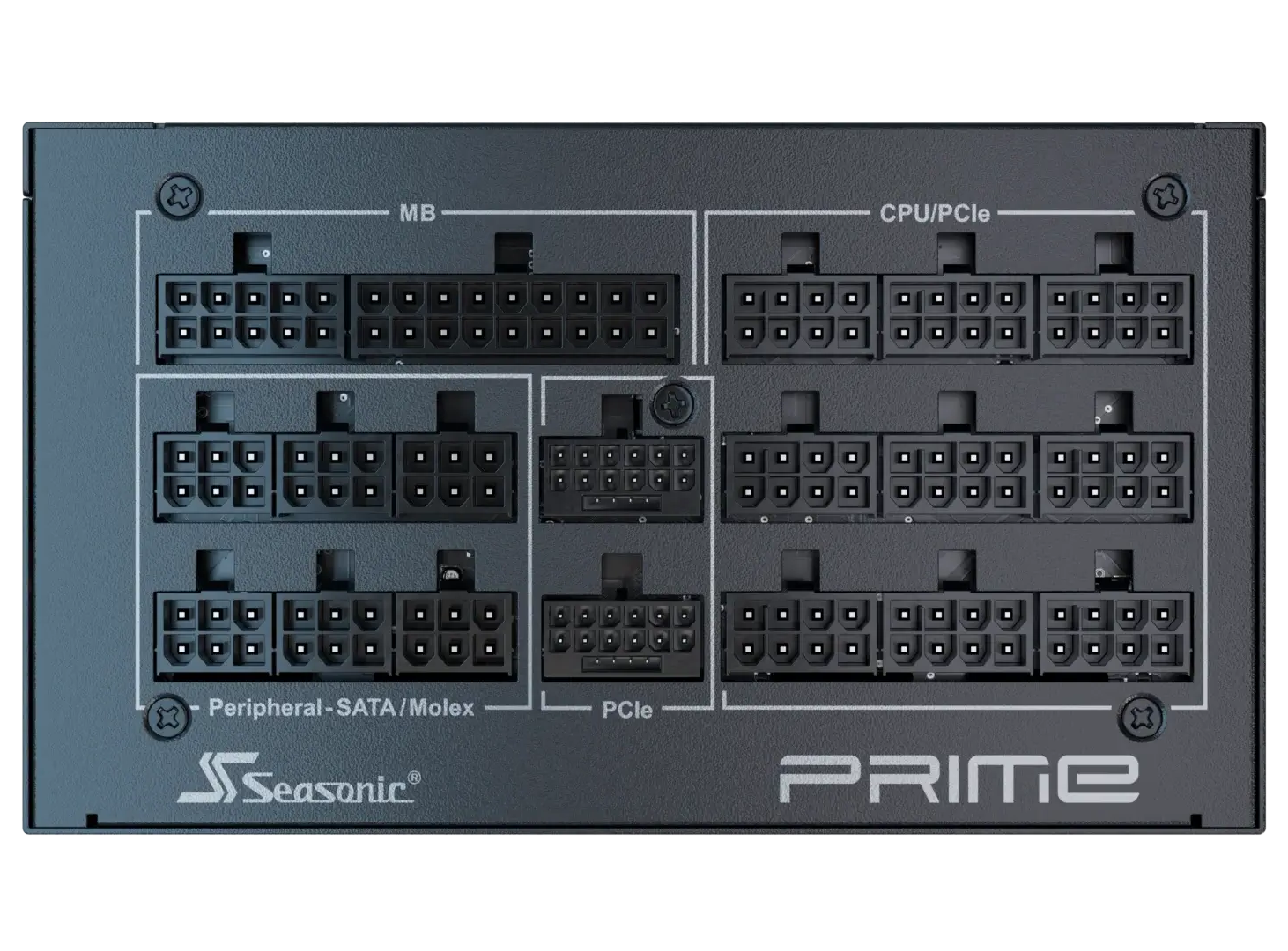

Cable InformationModularityFully Modular
Cable typeIndividual Black Cables with Braided Pattern
Electrical FeaturesOperating Temperature0 - 50 C
MTBF @ 25 C, excl. fan 100,000 hours
AC InputFull Range
ProtectionOPP, OVP, UVP, OCP, OTP, SCP
Safety and EnvironmentalSafety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty12 Years

V28-PSUSEA1600TX
Power Output
AC InputVoltage: 100 V - 240 V
Current: 15 - 10 A
Frequency: 50 Hz - 60 Hz
DC OutputRail+3.3 V+5 V+12 V-12 V+5 VSB
Maximum Power25 A25 A 133.3 A 0.5 A3 A
125 W 1600 W 6 W15 W
Total Continuous Power 1600 W

(V28-PSUSEA1600TX)

SKU V28-PSUSEA1600TX
Barcode # 4711173878018
Brand Seasonic
Shipping Weight 5.0000kg
Shipping Width 30.000m
Shipping Height 15.000m
Shipping Length 45.000m
